Acoustic Partition Wall with 56dB Sound Insulation, Up to 18M Height, and 6061-T6 Profile for Banquet Halls

Acoustic Partition Wall with 56dB Sound Insulation, Up to 18M Height, and 6061-T6 Profile for Banquet Halls

ชื่อแบรนด์: AE
เลขรุ่น: เออี100
MOQ: 10 ตารางเมตร
ราคา: USD 80-108 Per Square Meter
เงื่อนไขการจ่ายเงิน: L/C, D/A, D/P, T/T, Western Union, MoneyGram
ความสามารถในการจําหน่าย: 1,000 ตารางเมตรต่อเดือน
ข้อมูลรายละเอียด
สถานที่กำเนิด:
กวางตุ้งจีน
ได้รับการรับรอง:
ISO9001 SGS
ชื่อผลิตภัณฑ์:
ผนังแยกห้องเลี้ยง
ใบสมัคร:
ฉากกั้นห้องจัดเลี้ยง
ตัวเลือกการตกแต่ง:
วัสดุที่ลูกค้าจัดหา
ความสูง:
สูงถึง18ล้าน
ออกแบบ:
OEM & ODM
ฉนวนกันเสียง:
สูงสุด 56dB
รายละเอียดการบรรจุ:
ชั้นโฟมและกระดาษแข็งแข็งพร้อมเคสไม้อัดหรือพาเลทเหล็ก
เน้น:

56dB Sound Insulation Acoustic Partition Wall

,

18M Height Operable Partition Wall

,

6061-T6 Profile Banquet Hall Partition Wall

คําอธิบายสินค้า
Banquet Hall Removable Operable Acoustic Partition Wall For Hotel
Transform your space effortlessly with our versatile acoustic partition walls. These innovative solutions enable you to convert two rooms into a single expansive area using a simple folding screen. Ideal for environments where floor space is valuable, our partitions allow a large meeting room to be divided into three smaller areas for daily use.
Our acoustic partition walls are designed for ease of use and come with an optional powered operation for added convenience. They provide excellent sound insulation between rooms while allowing quick and smooth reconfiguration of the space. Choose from various finishes including Melamines, Veneers, and writable wall panels to complement your interior decor.
Key Features:
  • Top hung system without the need for a floor track
  • Retractable top and bottom seals ensure effortless movement of panels
  • Concealed or exposed panel edge profiles
  • Numerous panel stacking options for complete flexibility
  • Extensive range of surface finishes available
  • Various levels of sound reduction available
  • Combines elegance with robust construction
  • Customization options available
Roller Options:
  • Dupont POM roller
  • 304 stainless steel heavy duty roller with safety device & CNC machining
  • Patented wheel surface and shape for easy operation
Panel Options:
  • Thickness: 68mm, 89mm & 105mm
  • Wide variety of acoustical and decorative finishes
  • 6061-T6 profile with Q235 steel frame for superior durability
  • Top & bottom jack lifting mechanism seal with 800N power
  • Magnetic seal with 40N/m attraction
Technical Specifications
Series Element Thickness (mm) Element Width (min/max) Clear Height (min/max) Construction Panel Fixing Vertical Profile Design
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
* Larger widths possible on application. Provisional details regarding the element heights/widths indicated can only be confirmed following consultation with the Design Department.
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56. Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m.

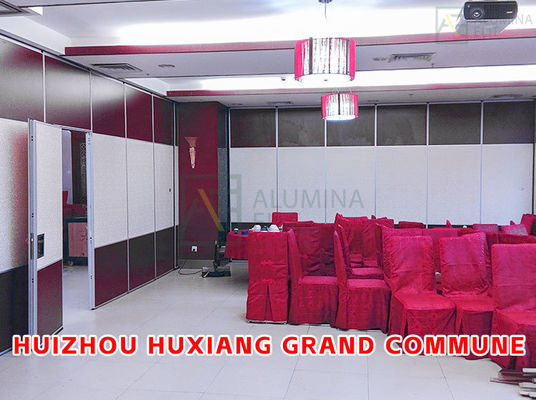

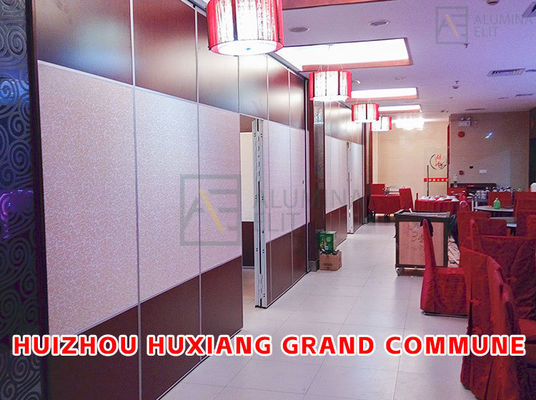

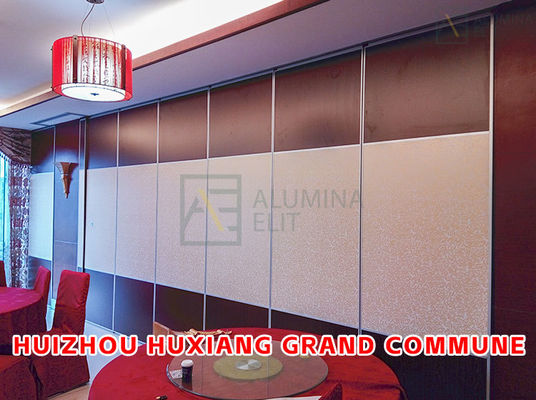

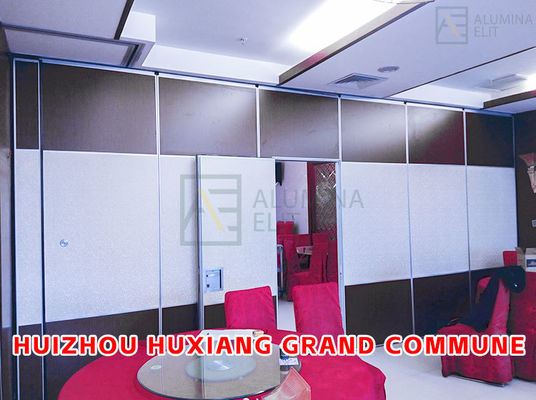

Project Examples
Acoustic Partition Wall with 56dB Sound Insulation, Up to 18M Height, and 6061-T6 Profile for Banquet Halls 0
