| ชื่อแบรนด์: | AE |
| เลขรุ่น: | เออี85 |
| MOQ: | 10 ตารางเมตร |
| ราคา: | USD 90-110 Per Square Meter |
| เงื่อนไขการจ่ายเงิน: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| ความสามารถในการจําหน่าย: | 1,000 ตารางเมตรต่อเดือน |

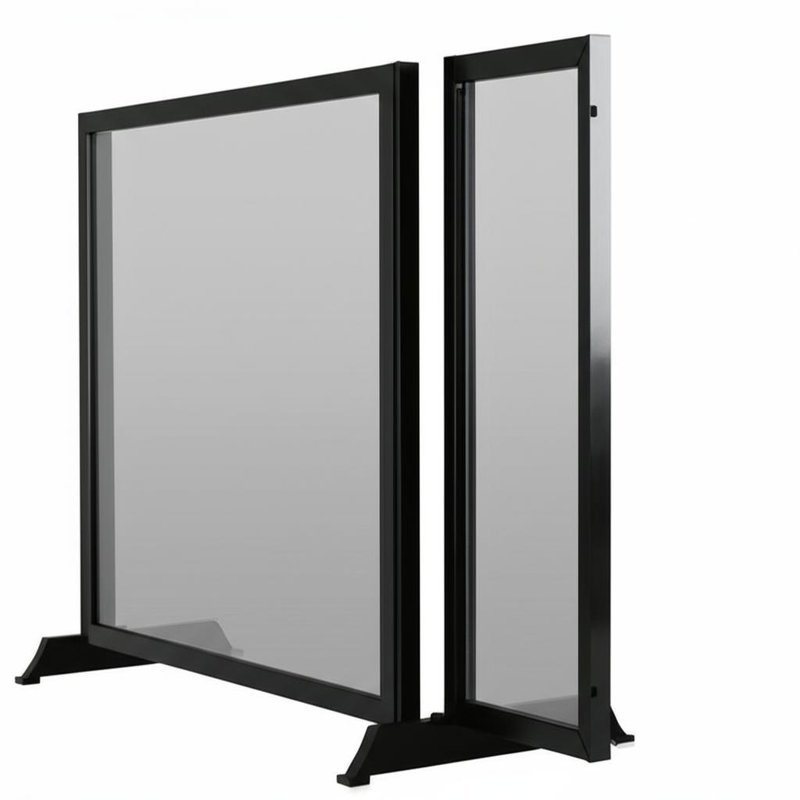

AE Partition: High-Performance Acoustic Control. Simplified.
We deliver superior, customizable partition solutions for global clients. Our flagship product, the restaurant partition, combines cutting-edge technology with robust construction for maximum performance and value.
Key Product Features:
The AE Advantage:
SPECIFICATION:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS | ||||||
| Dimensions in mm* | Design | |||||
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight |
||||||
